VHF
Dental Milling MachineR5
5-axis milling machine for continuous production and high performance
The VHF R5 is a 5-axis dental milling machine for labs seeking maximum productivity and versatility, enabling continuous milling of zirconia, titanium, and CoCr with automatic material changing.
In practice, it enables 24/7 production with automatic switching between dry and wet milling, processing discs, blocks, and abutments without intervention, increasing capacity, reducing time, and maximizing ROI
Top 3 R5 Features
Total all-in-one

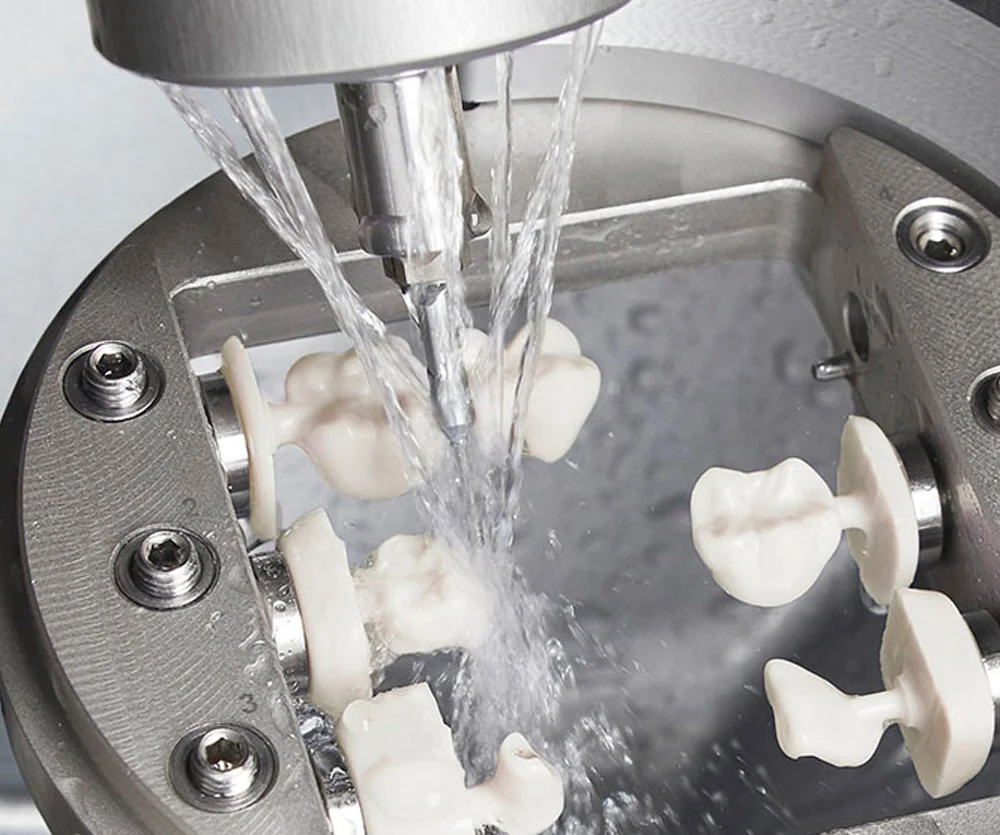

Dry and wet milling in the same machine, with no material limitations
Processes zirconia, titanium, CoCr, PMMA, and glass-ceramic in the same workflow
Handles any type of case, from simple restorations to full arch
True automation
Automatic changer with up to 10 discs, 60 blocks, or 60 abutments
Continuous production without human intervention (including overnight)
Reduces operating costs and increases lab capacity
Extreme precision
Repeatability accuracy of ±3 µm for passive fit
Spindle up to 80,000 rpm with 800W of power
Robust structure that reduces vibration and improves final quality
24/7 Production
Total automation that enables continuous milling with material changing without intervention, increasing productivity and reducing costs
Materials compatible with the R5
High performance for a wide range of workflows.
Single units
Bridges (up to 3 units)
crowns, veneers, inlays, onlays on natural teeth
Bridges (up to 3 units)
and implant-supported crowns
Implant bars
Implant cases with angled screw channel
Full-arch protocols
Custom Ti abutments (Premill)
Custom abutments in other materials
Attachments
Occlusal splints
Denture base
Dentures (Full Dentures)
Removable Partial Dentures
Technical specifications
Key Questions VHF R5
It is designed for laboratories, especially those seeking high production, automation, and material versatility.
Yes. It is one of the few milling machines that processes metals like titanium and CoCr with high precision.
The main difference lies in the R5’s ability to mill Titanium discs. This makes it possible, for example, to mill implant bars.
Yes. It features an automatic material and tool changer, allowing for continuous production without intervention.
Despite being a very versatile and complete solution, it is not complex to operate. It features an intuitive interface and integrates with open CAD software, making daily use easy.
The main competitors on the market today are machines such as the Imes-Icore 350 Loader, Amann Girrbach Ceramill Matron, DEPRAG W5 MAX, Redon Bestmill, IVOCLAR PM7, and ARUM 5X-500 L.
